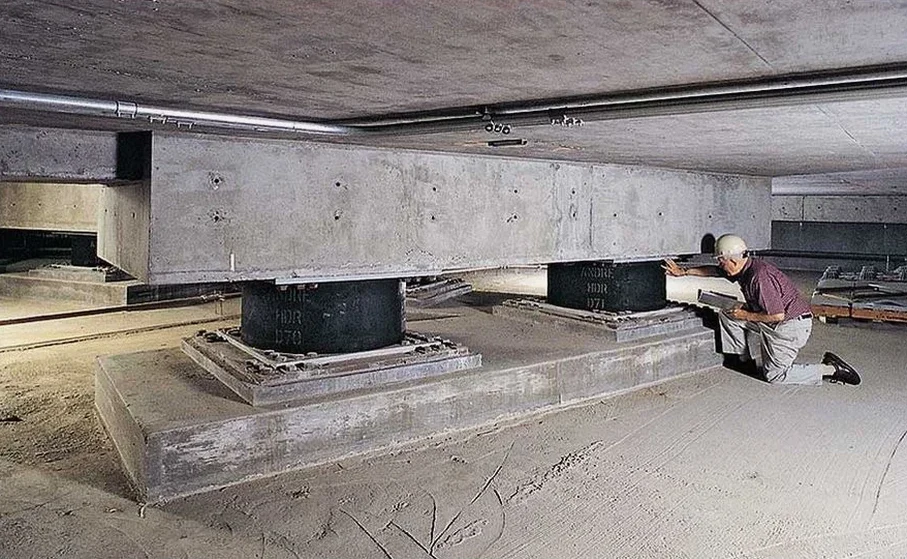

Scottsdale’s growth from a modest agricultural outpost to a sophisticated urban center brought development directly onto the Paradise Valley basin margin, where abrupt lateral changes in alluvium stiffness create complex seismic wave propagation. The 1995 addition of the city’s General Plan safety element formalized geotechnical review for essential facilities after USGS Quaternary fault mapping identified the McDowell Mountain and Cave Creek fault zones within the metro boundary. A base isolation seismic design strategy decouples the superstructure from ground motion by inserting flexible bearings with a period shift typically above 2.0 seconds, well beyond the predominant 0.3–0.8-second range of Scottsdale basin resonance. When the site sits within 10 km of a mapped active trace, the liquefaction assessment becomes a parallel input because excess pore pressure can alter foundation compliance beneath the isolation plane. For deep basin profiles where impedance contrasts trap long-period energy, the seismic microzonation study refines the spectral acceleration envelope that governs bearing displacement capacity.
A properly tuned isolation plane in Scottsdale can cut interstory drift by 60 to 80 percent compared with a fixed-base condition, even under near-fault pulses recorded within the Phoenix metro corridor.
How we work
Local ground factors
A three-story medical office building on Scottsdale Road north of Indian Bend was designed with fixed-base concrete shear walls on a site where the caliche layer dips 12 degrees westward. The geophysical survey identified a velocity contrast at 18 meters depth consistent with a buried channel margin, a geometry known to amplify basin-edge surface waves. Without isolation, the drift ratio under the MCER spectrum exceeded 2.2 percent in the east-west direction. Adding lead-rubber isolators at the basement level shifted the fundamental period to 2.8 seconds and dropped the drift below 0.7 percent, keeping the surgical suite operational post-event. The main residual risk is torsional response if the isolation system’s center of rigidity shifts under eccentric live load; we require a 3D nonlinear time-history analysis with at least seven ground motion pairs scaled to the Scottsdale-specific uniform hazard spectrum.
Explanatory video
Reference standards
ASCE/SEI 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 (International Building Code), Chapter 17, Structural Tests and Special Inspections, ASCE/SEI 41-23 Seismic Evaluation and Retrofit of Existing Buildings (isolation provisions), AASHTO Guide Specifications for Seismic Isolation Design (applicable to bridges within Scottsdale city limits)
Complementary services
Site-Specific Ground Motion and Geotechnical Baseline
We execute deep borings, downhole PS suspension logging, and MASW arrays to build a shear-wave velocity profile to 30 meters and bedrock depth. The probabilistic seismic hazard analysis incorporates USGS NSHM 2023 fault sources within a 50 km radius around central Scottsdale, generating uniform hazard spectra and conditional mean spectra for periods from 0.01 to 10 seconds.
Isolation System Design and Nonlinear Modeling
We select bearing type (lead-rubber, high-damping rubber, or friction pendulum), optimize target period and damping, and build a 3D OpenSees or Perform-3D model that captures bidirectional coupling, uplift potential, and moat wall pounding. Each isolator is checked against prototype test acceptance criteria per ASCE 7-22 Section 17.3.
Peer Review and Prototype Testing Oversight
Scottsdale building departments often require third-party peer review for isolated structures above Risk Category III. We manage the independent review panel, coordinate the testing protocol at the manufacturer’s facility, and certify that the production bearings meet the aged and unaged stiffness bounds established during design.
Typical parameters
Common questions
How does Scottsdale’s proximity to the McDowell Mountain fault affect isolation bearing displacement?
Near-fault ground motions from the McDowell Mountain fault zone contain forward-directivity pulses that can concentrate displacement demand in fewer, larger-amplitude cycles. Our design increases the moat width by 15 to 25 percent compared with far-field motions and uses bidirectional orbit testing to verify that the bearings can accommodate the pulse without exceeding the ultimate shear strain limit, typically 350 to 400 percent for natural rubber compounds.
What is the typical cost range for a base isolation system on a mid-rise Scottsdale project?
For a five- to eight-story building in Scottsdale, base isolation seismic design including geotechnical investigation, analysis, bearing procurement, and construction-phase inspection generally falls between US$4,010 and US$7,370 per square meter of footprint. The final figure depends on the number of isolators, moat detailing, and the required prototype testing program.
Can existing Scottsdale buildings be retrofitted with base isolation?
Yes, seismic isolation retrofit is feasible for steel and reinforced concrete buildings where a transfer diaphragm can be inserted above the foundation level. The process involves temporarily supporting columns on jacking frames, cutting the column base, installing isolators, and constructing a new moat wall. ASCE 41-23 provides performance-based acceptance criteria, and we have applied this technique to heritage structures in Old Town Scottsdale where demolition was not an option.
What laboratory tests are required for the elastomeric bearings?
ASCE 7-22 mandates prototype tests on two full-size bearings per type: three fully reversed cycles at increasing displacement amplitudes up to the MCER displacement, plus one cycle at the total maximum displacement. We also require aging tests at 70 °C for 21 days and scragging recovery verification. Production tests on every bearing include compression stiffness, effective stiffness, and damping ratio at the design displacement.
How does the caliche layer beneath Scottsdale influence the isolation foundation design?
The caliche (Stage III–IV petrocalcic horizon) found across much of Scottsdale provides high bearing capacity, often exceeding 480 kPa, which reduces the footing dimensions under the isolation podium. However, its variable thickness and occasional dissolution cavities require a detailed ground-penetrating radar survey and proof-rolling with a plate load test on the excavation base before casting the mat. Where caliche is absent, we deepen the foundation to the underlying coarse alluvium and specify controlled low-strength material backfill to uniformize the subgrade stiffness.
